£4,599.00

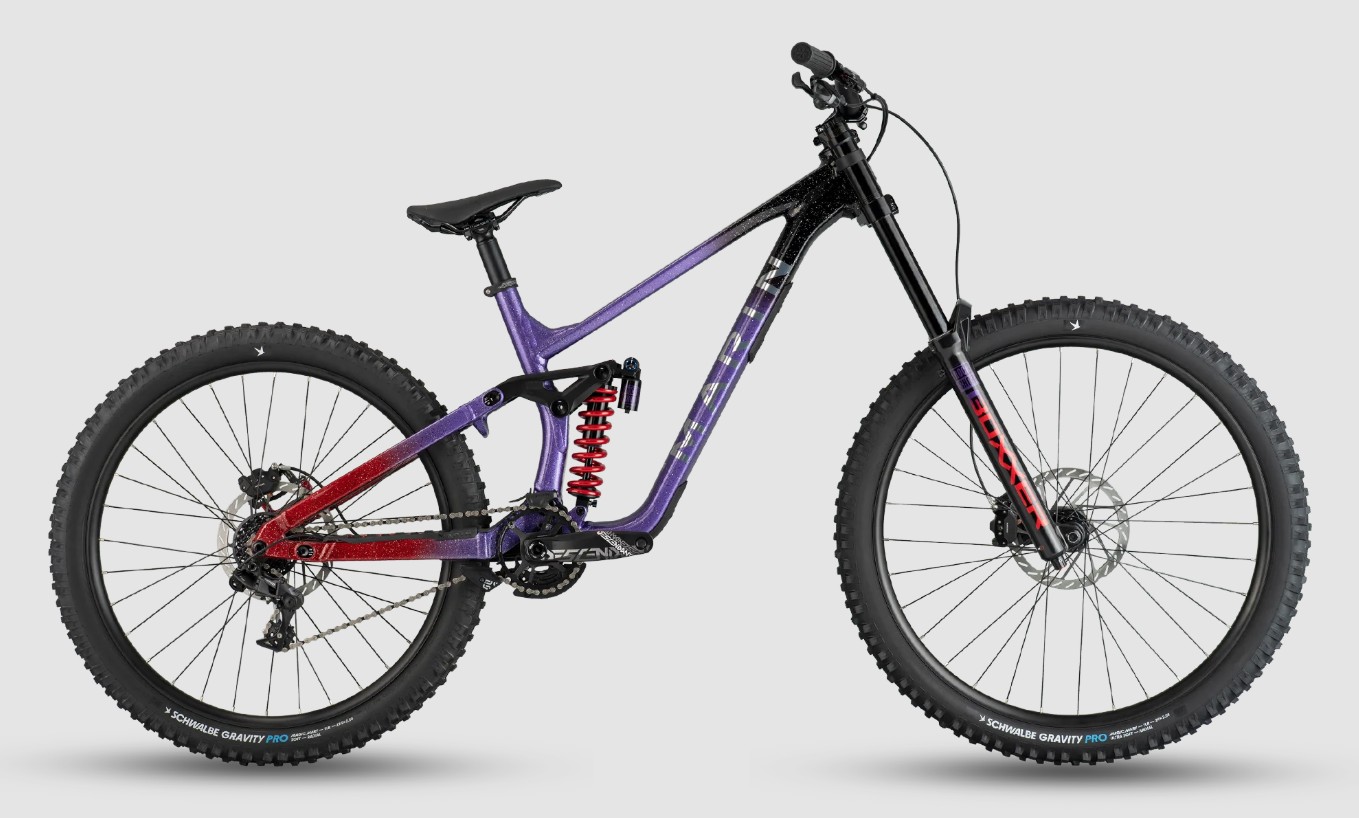

The Quake is made for the biggest sends, the wildest lines and the highest speeds. The Series 4 Aluminum frame soaks it all up without breaking a sweat – adjustable geometry and 180mm of MultiTrac 2 suspension help you dial it to any track, any condition, any ambition. RockShox’s legendary Boxxer fork and Vivid shock, SRAM’s powerful Maven brakes, GX DH drivetrain and Schwalbe’s grippy radial casing tires complete the jaw-dropping spec.
This is what invincible feels like.
| Frame | All New Series 4 Alloy, 180mm MultiTrac LT Suspension, Adjustable CS Length/Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH |
| Front Suspension | Rock Shox Boxxer, 200mm Travel, 29" , 110x20mm Maxle Stealth, 52mm Offset |
| Rear Suspension | Rock Shox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune, S = 350 lb/in / M = 450 lb/in / L = 550 lb/in |
| Rim | New Marin DH Rim, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Hub Rear | Formula, DDL-348S, 148x12mm, 6-Bolt Disc, 32H, Shimano Freehub Body |
| Hub Front | Marin Forged, 110x20mm, 6-Bolt Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Front: Schwalbe Magic Mary, Gravity Pro, 29x2.5", Radial, Ultra Soft Rear: Schwalbe Magic Mary, Gravity Pro, 27.5x2.5", Radial, Soft |
| Chainguide | e*thirteen Vario DH Chainguide |
| Derailleur Rear | Sram GX DH |
| Shift Lever | Sram GX DH, 7-Speed |
| Crankset | Sram Descendant Alloy 34T, 165mm |
| Bottom Bracket | Sram DUB BSA |
| Chain | Sram PC-1110 |
| Cassette | GS DH, 11-15T |
| Brakes Front | SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor |
| Brakes Rear | SRAM Maven Silver, 4-Piston Hydraulic Disc, HSC 200mm Rotor |
| Brake Levers | SRAM Maven Silver |
| Handlebar | PNW Range Handlebar, 38mm Rise, 35mm Clamp, 800mm Width |
| Stem | Marin Direct Mount Stem, 35mm Length, 35mm Clamp |
| Grips | Marin Grizzly Lock-On |
| Headset | FSA No 74 |
| Seatpost | Marin Alloy, 34.9mm |
| Saddle | Marin Short Nose |
| Extras | Downtube & Shuttle Guards |
Cheers for stopping by - Keep the wheels spinning!
