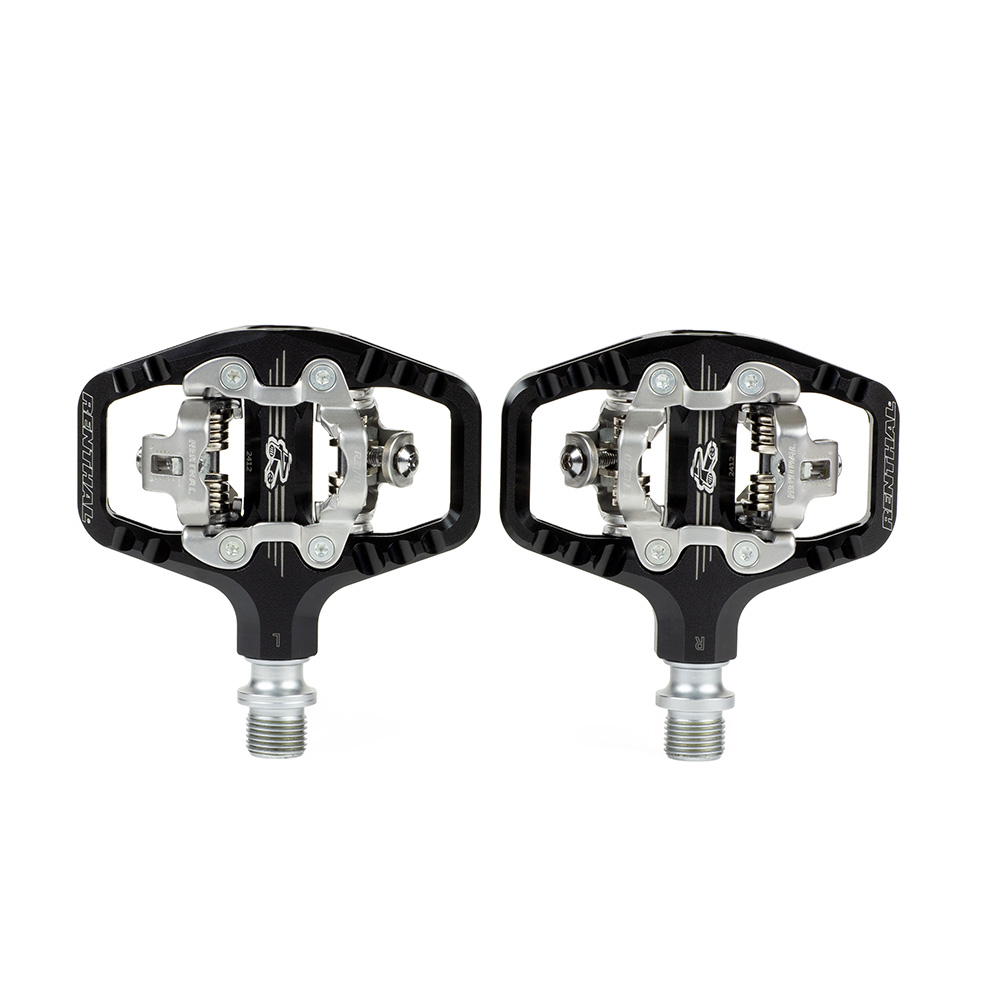

The all-new Revo-TRC is a lightweight, medium-sized body clip pedal, aimed squarely at trail and enduro MTB riders, BMX racers and the gravel riding crew.

A forged and CNC machined body, lightweight cromoly axle bring the weight down to 394g, whilst triple cartridge bearings and the sealed axle system boost durability.

The proprietary Renthal binding features easy entry geometry, a huge range of spring tension adjustment and is fully SPD compatible.

Whether riding or racing, the Revo-TRC is the lightweight, versatile pedal of choice.

Features:

• Lightweight: The main body of the Revo-TRC is made from forged 6061 aluminium. The pedal is then fully CNC machined to remove as much material as possible. Internally, a short cromoly axle with an inboard hollow cut-out further reduces the overall weight to just 394g.
• Proprietary Binding: The Renthal developed binding uses easy entry geometry. This allows the rear jaw to move down and away from the cleat on engagement. The effect is a reduction in the force required to engage the cleat for a given spring tension. The bindings feature a huge range of spring tension to suit any rider's preference. Renthal bindings are fully SPD compatible.
• Axle System: The patent-pending axle system, featured in the Revo-TRC, allows full home servicing, using standard tools found in anyone's toolkit. All that is required is a 6mm and 8mm hex-key, a standard 8mm socket, a torque wrench and a mallet. The unique system uses the axle to both remove and reinstall the bushings. The bearings are also pressed into place, using the pedal internals.
• Durable Internals: The Revo-TRC spins on an inboard Igus bush, which is sealed against the elements with a full-contact wiper seal. Centrally mounted, there are three cartridge bearings, directly in line with pedalling forces, to massively increase durability. An end-cap with O-ring completes the sealed package.

Specification:

• 63.5 x 81mm 6061 body, with CNC-machined finish.
• Proprietary Renthal binding, with easy-entry geometry.
• Super wide range of tension adjustment, for all preferences and uses.
• Triple cartridge bearings, centrally positioned for durability.
• Inboard Igus bush, with Patent Pending Renthal easy service axle system.
• O-ring sealed end cap and full contact wiper seal, inboard.
• 55mm crank to binding distance.
• SPD cleat compatible (supplied with Renthal cleat).
• Lightweight at just 394g per pair.
